Description

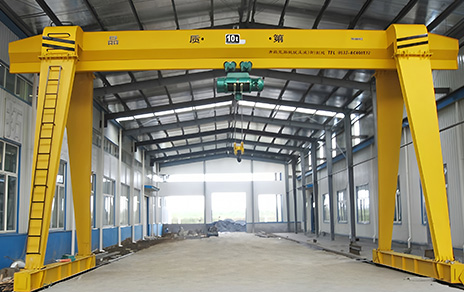

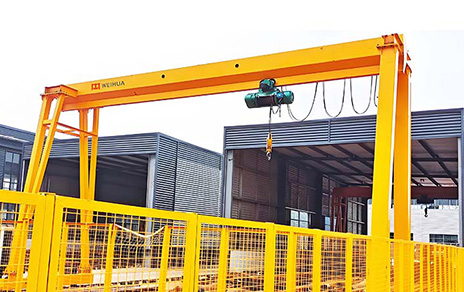

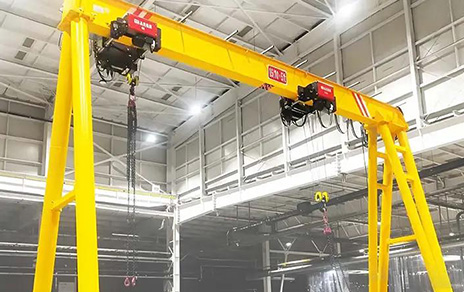

Single-beam hoist gantry crane is a common light and small lifting equipment. It is especially suitable for cargo loading and unloading operations in warehouses, factories, and docks. It mainly has the bridge frame (including the main beam and end beam), electric hoist, trolley running mechanism, and electrical control system. This type of gantry crane with hoist is popular for its compact structure, easy operation, and small footprint.
Specifications
| Items | Specifications |
| Specification | 1-32 ton |
| Span | 12-35 meter |
| Maximum lifting height | 6-12 meter |
| Hoisting speed | 3-8 m/min |
| Trolley travelling speed | 20 m/min |
| Gantry travelling speed | 20-30 m/min |
| Support for customized design | |
Advantages
When purchasing a marine travel lift for sale, it is recommended to conduct a professional evaluation in the following four areas:
Compact & Space-Saving Design
The single main beam structure significantly reduces the crane's footprint, making it ideal for workshops and warehouses with limited space. Its compact, low-clearance design maximizes working area efficiency while maintaining full lifting functionality.
Cost-Effective & Lightweight Construction
With a box-type or I-beam structure, the crane is lighter than double-girder alternatives, reducing wheel pressure and lowering foundation investment. This simple design minimizes manufacturing and installation costs, offering excellent value for small to medium tonnage applications .
Flexible Configuration & Versatile Compatibility
The MH crane supports a wide range of electric hoist options—including CD/MD wire rope hoists, explosion-proof, low-headroom, and European-style hoists—to match diverse working conditions. Customizable parameters like span (12–35m) and lifting height (6–12m) further enhance adaptability.
Safe & Reliable Operation
Equipped with comprehensive protections—including overload protection, travel limits, zero protection, and emergency stop—the crane ensures operator and equipment safety. Optional PLC automation and remote control deliver smooth, precise ha

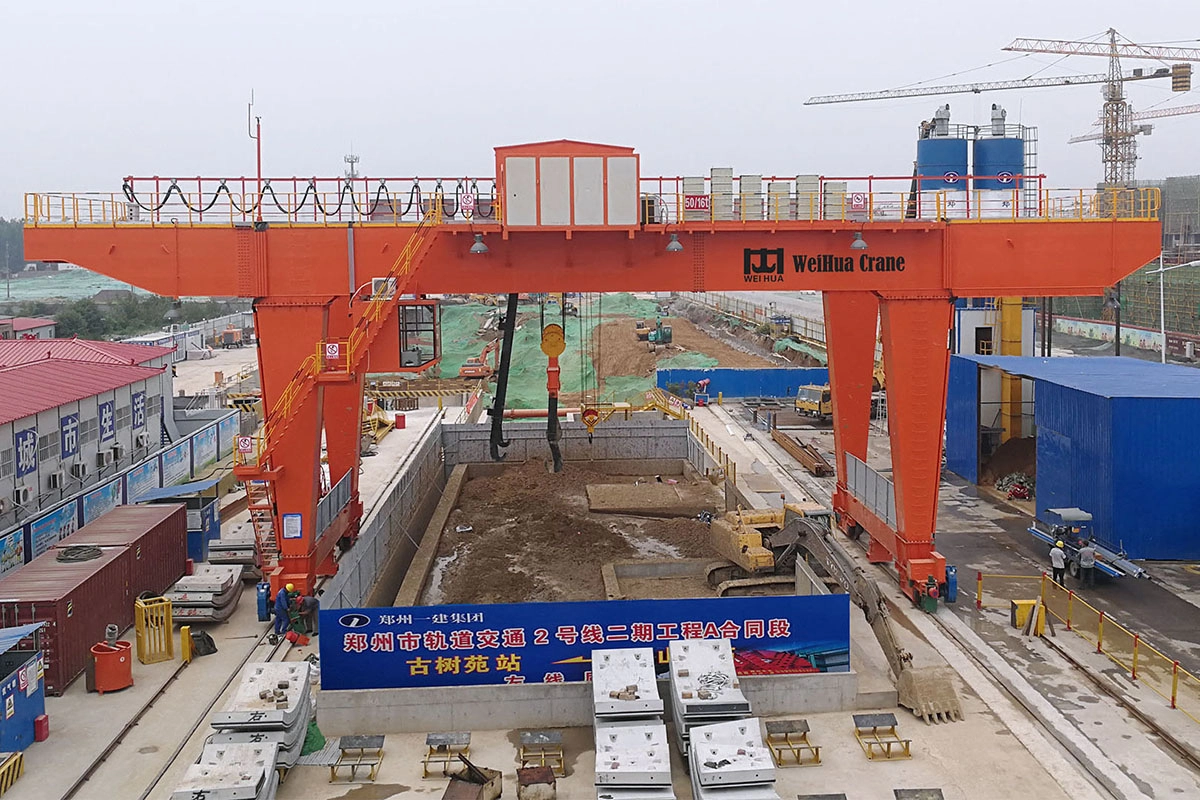

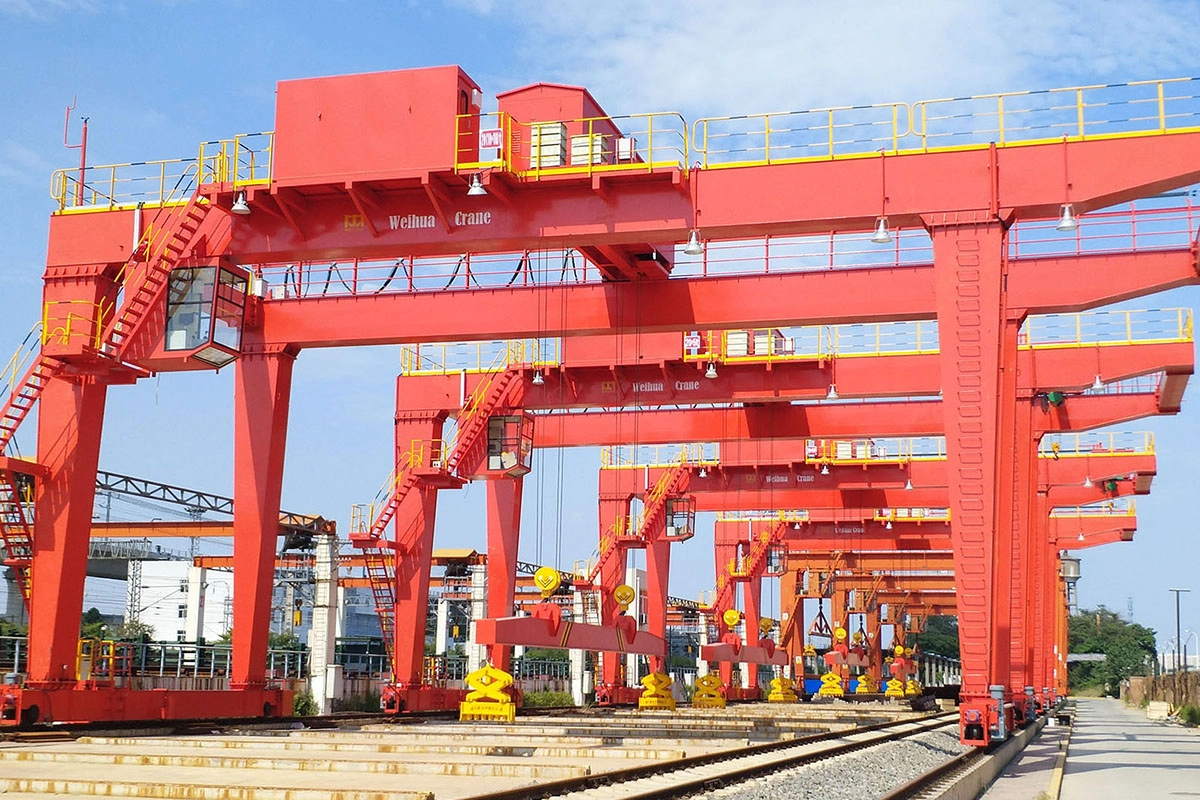

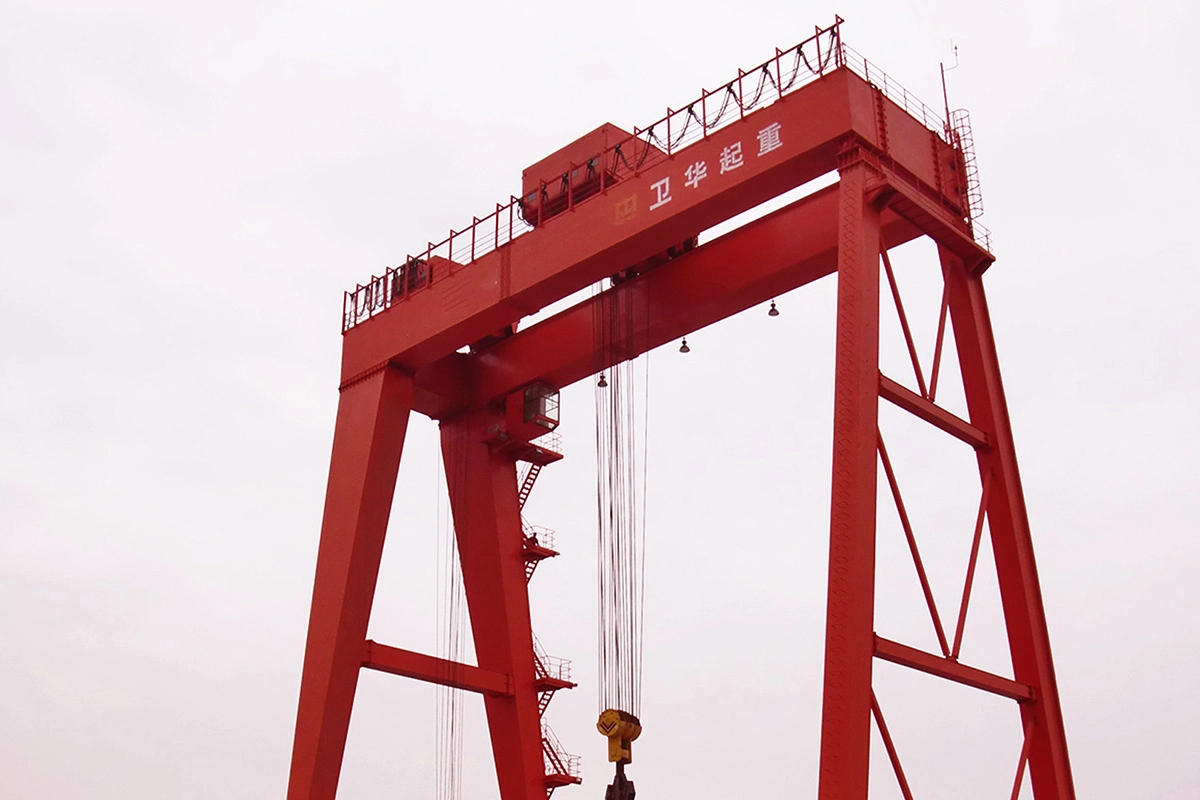

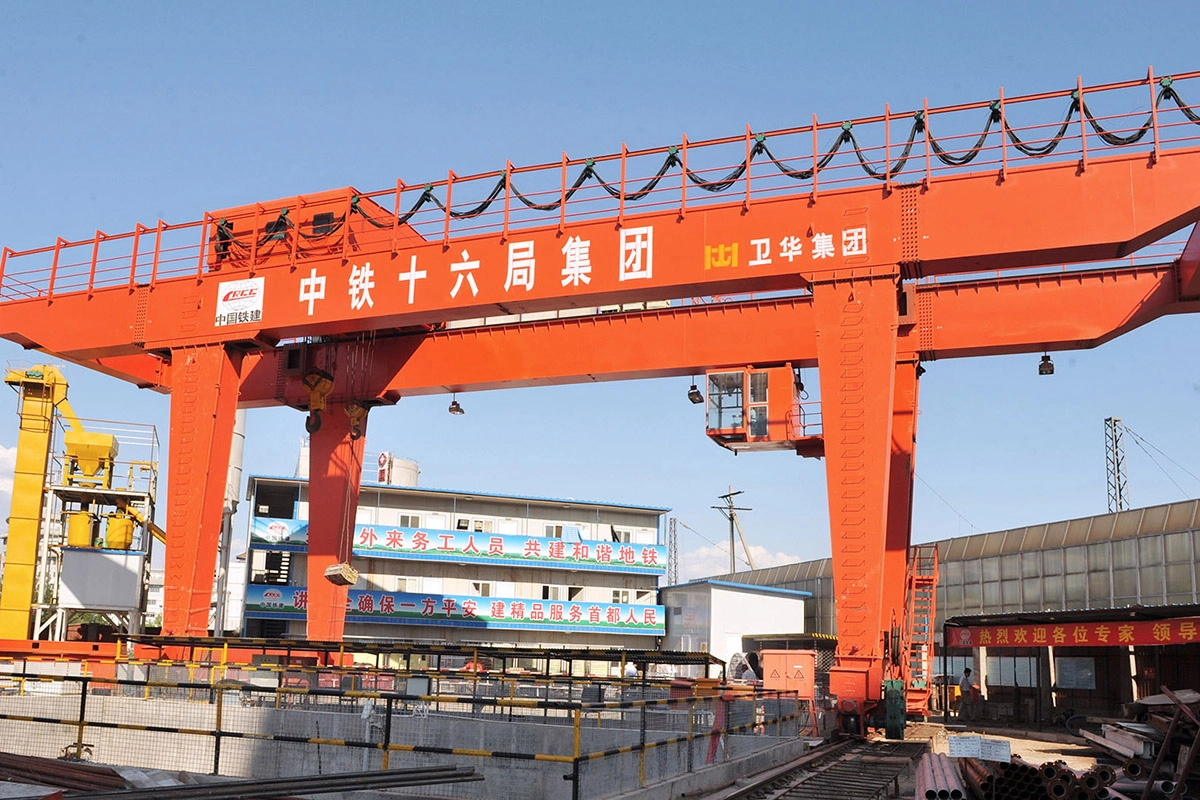

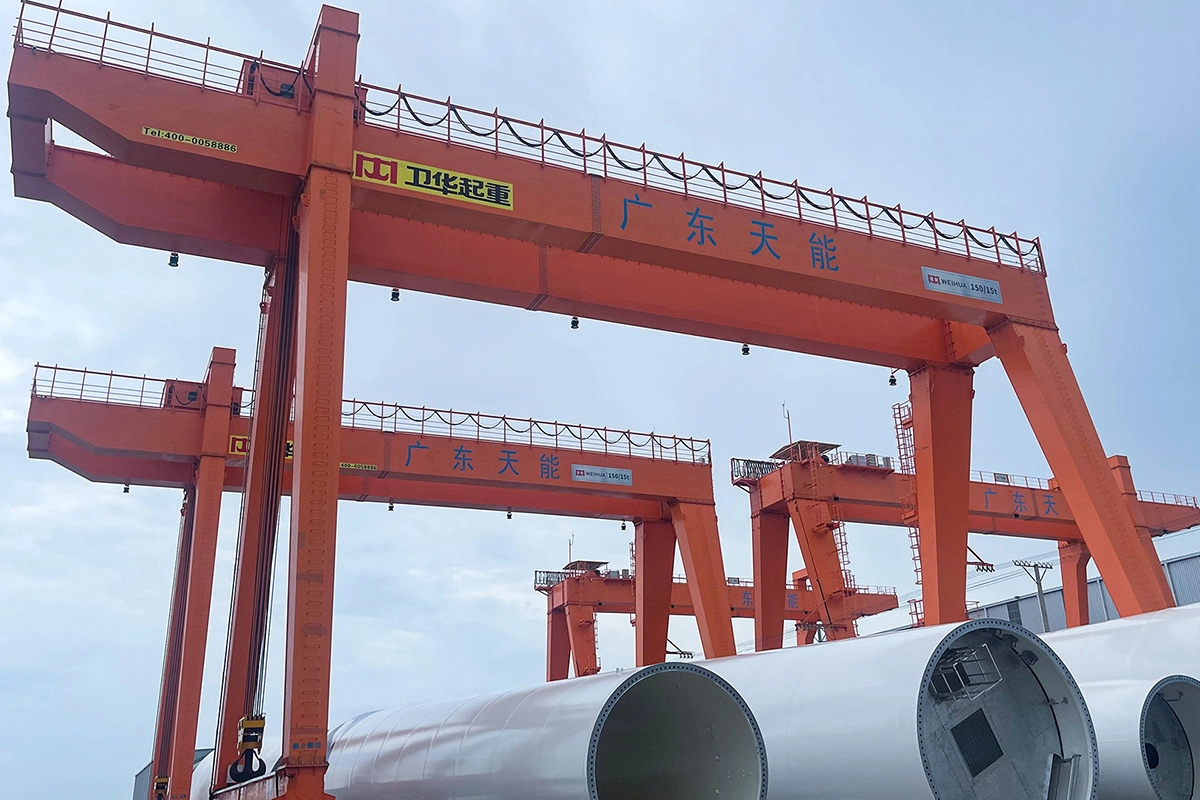

Cases
