Description

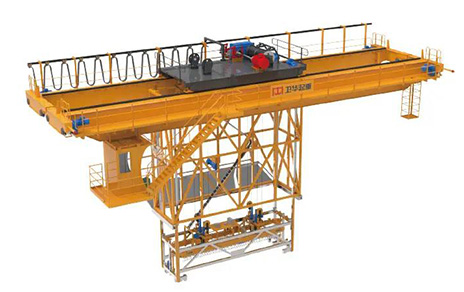

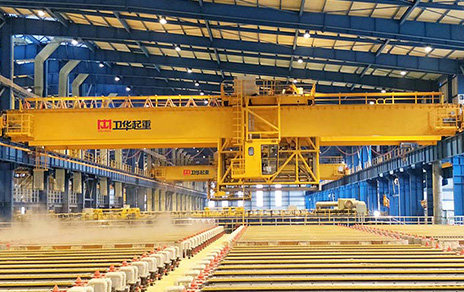

The electrolytic copper intelligent overhead crane is a high-efficiency lifting equipment specially designed for the copper electrolysis refining process. Equipped with customized spreaders, it can accurately complete the gripping, transferring, and positioning of cathode and anode plates in the tank.
Specifications
| Span (m ) | Electrolytic Copper Intelligent Overhead Crane | |
| 31 .5 | ||
| Working Class | A8 | |
| Lifting capacity (t) | 4x8 (with spreader) | |
| Lifting height (m ) | 6 .5 | |
| Lifting speed (m / min ) | 2 ~ 20 | |
| Trolley speed (m / min ) | 4.5 ~ 45 | |
| Crane running speed (m / min ) | 1.6 ~ 160 | |
| Electric Hoist (secondary hook) | Lifting capacity (t ) | 1.6 ~ 160 |
| Lifting speed (m / min) | 8 | |
| Running speed (m / min) | 20 | |
| Speed regulation form | Crane | Variable Frequency |
| Trolley | Variable Frequency | |
| Spreader | Frequency conversion | |
| Maximum wheel pressure (KN) | 220 | |
| Large car track (recommended) | QU100 | |
| Total power (KW) | 270 | |
| Operation form | Driver's compartment (with heating and air conditioning) Movable with trolley | |
Advantages
When purchasing a marine travel lift for sale, it is recommended to conduct a professional evaluation in the following four areas:
Corrosion & Insulation Resistance
Specially engineered for copper electrolysis workshops, the crane withstands acid mist, high humidity, and corrosive gases. Its bridge features anti-corrosion coating and critical components adopt electrical insulation design to prevent current interference from high-voltage electrolyzers, ensuring safe and reliable operation above the tanks.
High-Precision Positioning
The crane achieves exceptional positioning accuracy—±2mm for spreader alignment and ±10mm for crane and trolley travel—through a dual-stage system combining pre-positioning and laser ranging technology, enabling seamless electrode plate handling and precise alignment with electrolytic cells and stacking equipment.

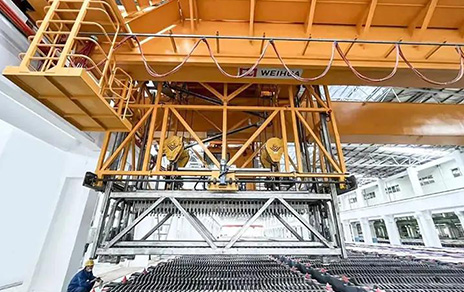

Intelligent Spreader System
The stainless steel spreader integrates multiple intelligent functions: guided insertion and tapping for plate arranging, multi-mode lifting (independent or joint cathode/anode handling) boosting efficiency by 30%, and an anti-splash design reducing electrolyte spillage by up to 95%.
Fully Automated Operation
Powered by Siemens PLC and full variable frequency drives (VFD), the system supports fully automatic, semi-automatic, and manual control modes. The HMI interface provides real-time monitoring and fault diagnostics, enabling "black light" unmanne
