Description

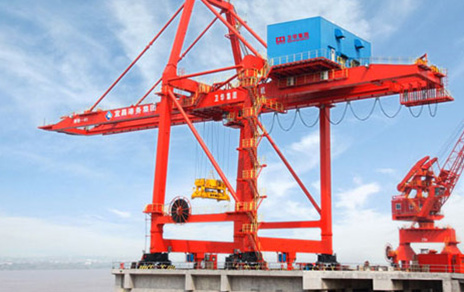

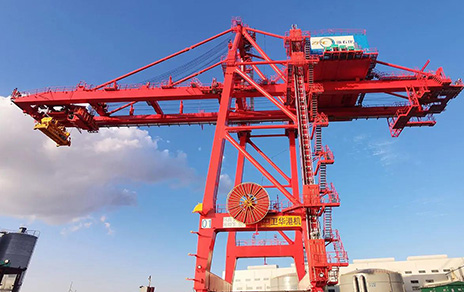

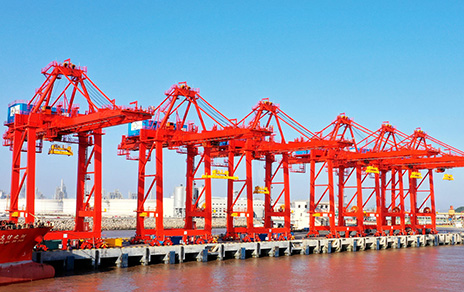

Ship-to-shore quay crane, also known as STS crane is the core lifting equipment at the front of the container terminal. The quay container crane is the key to the efficient operation of modern ports. It looks like a precise and strong giant, specializing in loading and unloading container ships. The main function is to connect the logistics transfer between vessels and terminals seamlessly. Quay container cranes could easily unload containers directly from ships to terminals, or vice versa. And then it is capable of loading containers accurately and precisely from terminals to ships to safeguard the smoothness of container transportation.
The metal structure has high strength and excellent stability, providing solid support for the whole equipment. No matter how much load it faces, it can be as stable as a mountain, guaranteeing the safe operation of the equipment. Weihua quay crane is in strict compliance with international standards such as FEM, DIN, IEC, AWS, GB, etc. This series of high standards ensures the quality and an internationally leading level.
Specifications
| Lifting Capacity (t) | 10 | 16 | 10-20 | Oct-32 | 36/16 | Oct-50 | |
| Span (m) | 18-35 | ||||||
| Lifting Height (m) | 10-13 | ||||||
| Duty Class | A5-A8 | ||||||
| Speed | Lifting | 8.5 | 7.9 | 7.2/10.4 | 7.2/10.4 | 7.8/10.5 | 6/10.4 |
| (m/min) | Trolley | 43.8 | 44.5 | 44.5 | 41.9 | 41.9 | 38.13 |
| Crane | 40 | 38 | 38 | 40 | 40 | 38 | |
| Motor | Lifting | YZR180L-6/17 | YZR225M-8/26 | YZR225M-8/26 | YZR280S-10/42 | YZR280M-10/55 | YZR280M-10/55 |
| YZR200L-6/26 | YZR200L-6/26 | YZR225M-6/34 | YZR200L-6/26 | ||||
| Trolley | YZR132M1- | YZR132M2- | YZR132M2- | YZR132M1- | YZR132M1- | YZR132M1- | |
| 6/2.5*2 | 6/4*2 | 6/4*2 | 6/4*2 | 6/6.3*2 | 6/6.3*2 | ||
| Crane | YZR160L-6/13*2 | YZR160L-6/13*2 | YZR160L-6/13*2 | YZR160M2- | YZR160L-6/13*4 | YZR160L-6/13*4 | |
| YZR160M1- | YZR160M2- | 6/8.5*4 | YZR160M2- | ||||
| 6/6.3*4 | 6/8.5*4 | 6/8.5*4 | |||||
| Weight | Trolley | 9 | 9.5 | 12 | 16 | 18 | 24 |
| (t) | Total | 63.2-100 | 78-106 | 79-120 | 95-108 | 106-155 | 195 |
| Wheel Pressure (KN) | 225-295 | 255-373 | 208-289 | 324-334 | 314-363 | 452 | |
| Steel Track | 43kg/m | 50kg/m | |||||
| Power Source | 3-phase A.C 380V 50HZ (As your demand) | ||||||
Advantages
When purchasing a marine travel lift for sale, it is recommended to conduct a professional evaluation in the following four areas:
Ultra-Heavy Lifting & Extreme Reach
Designed for the most demanding marine and offshore operations, these cranes deliver massive lifting capacities. A key example is the 700mt Travelling Quayside Crane, capable of hoisting 700 metric tons at a 25m radius, with other models reaching up to 5,000mt . Their extensive outreach—including models with a 65.5m boom capable of handling 23-container-wide vessels—ensures full coverage of the largest cargo ships and enables efficient handling of bulky offshore wind components .
Fully Electric & Regenerative Efficiency
Modern quayside cranes prioritize sustainability and operational economy through full electrification. By connecting directly to the quayside power grid, these cranes operate quietly and with high reliability. The systems are capable of regenerative energy, directing surplus power back to the grid to drastically reduce net energy consumption, thus limiting operational costs and environmental impact .
High-Speed & Flexible Logistics
Quayside cranes significantly accelerate cargo handling and ship turnaround times. They eliminate the need for space-intensive crawler cranes or complex tandem-lifts, enabling a significantly faster load-out process . Features like travelling at speed with a load in the hook allow for a flexible delivery schedule, ensuring more efficient use of the quayside and faster vessel turnaround .
Precision Handling & Advanced Control
To ensure safety and productivity, quayside cranes are equipped with advanced control systems. The all-electric drives provide high positioning accuracy, essential for delicate load placement . Specialised features, such as t
