Description

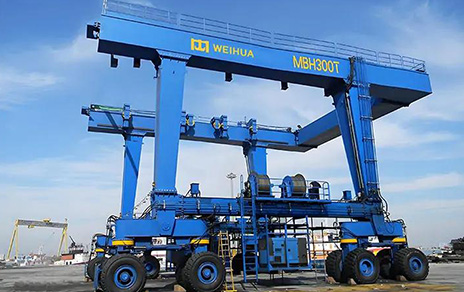

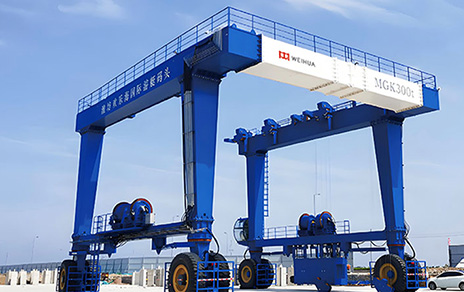

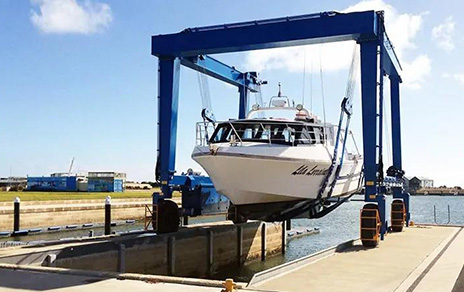

A marine travel lift, also called a boat lifting gantry crane or yacht lift crane, is an upgraded design based on the rtg gantry crane structure, mainly used for handling, storing, and maintaining yachts from 30 to 1,200 tons. Its unique "U"-shaped structural design can easily accommodate ultra-high hulls and ensure that yachts can safely enter the equipment. The equipment has 12 flexible movement functions, including linear motion, tilting motion, walking motion, Ackerman steering, etc., which can adapt to various terrains and complex working conditions. It is widely used in coastal areas and scenes that require high-precision lifting and horizontal transportation.
The boat marine travel lift can be customized according to user needs. It adopts a modular structure and supports flexible configuration to meet the needs of different hull sizes and weights. The Marine Travel Lift is equipped with high-strength lifting equipment and an intelligent synchronous control system to ensure stability and safety during the lifting process. At the same time, it supports multi-lifting point synchronous operation to improve operational efficiency. The marine travel lift crane can easily cope with complex terrain and narrow spaces. It is suitable for various scenarios such as ports, shipyards, yacht clubs, etc., providing efficient and reliable solutions for the maintenance, repair, and storage of yachts.
Specifications
| Capacity | 80 Ton | 100 Ton | 150 Ton | 200 Ton | 300 Ton |
| Span | 9.6m | 11.5m | 13.5m | 14m | 15.5m |
| Width | 11.5m | 13m | 16m | 16.5m | 18.1m |
| Length | 13m | 15m | 17m | 19.9m | 23.4m |
| Hight | 12m | 10m | 13m | 13m | 16.1m |
| Lifting speed (with load) | 0-1m/min | 0-1m/min | 0-1m/min | 0-1m/min | 0-1m/min |
| Lifting speed (without load) | 0-3m/min | 0-3m/min | 0-2m/min | 0-2m/min | 0-2m/min |
| Travelling speed (with load) | 0-25m/min | 0-20m/min | 0-20m/min | 0-20m/min | 0-25m/min |
| Travelling speed (without load) | 0-45m/min | 0-30m/min | 0-30m/min | 0-30m/min | 0-45m/min |
| Diesel engine | 132kw | 132kw | 154KW | 250kw | 250kw |
| Ground pressure | ~5Mpa | ~9Mpa | ~10bar | ~11bar | ~11bar |
| Max wheel load | 375KN | 420KN | 360KN | 470KN | 470KN |
Advantages
When purchasing a marine travel lift for sale, it is recommended to conduct a professional evaluation in the following four areas:
Massive Capacity & Oversized Vessel Handling
Rated from 32 to 1,200 tons, these cranes handle everything from small pleasure crafts to superyachts. The unique "U"-shaped or open-frame structure easily accommodates ultra-high hulls, allowing vessels taller than the crane itself to safely enter the equipment.
Hull-Safe Lifting Design
Uses wide, adjustable, high-strength synthetic slings that evenly distribute the yacht's weight and conform to the hull's curve—eliminating the risk of scratches or structural damage. Multi-point lifting systems further disperse forces for safe, balanced handling.
Superior Maneuverability in Tight Spaces
Rubber-tired, mobile design provides flexible movement across marinas and shipyards, including straight, diagonal, crab walking, and 90° steering. Optional 360° rotation and adjustable main girder width enable precise positioning in confined dock areas.
Corrosion-Resistant & Low-Maintenance Construction
Built with high-strength marine-grade steel treated with anti-corrosion coatings (sandblasting, pickling, hot-dip galvanizing) to resist saltwater and humidity. Modular structure reduces maintenance time by up to 40% and service costs by 70% compared t
