Description

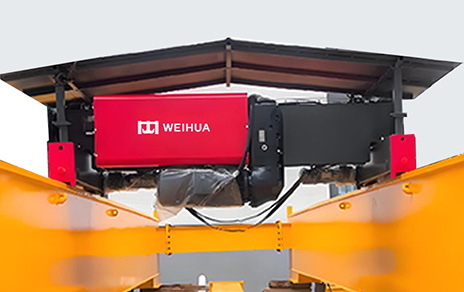

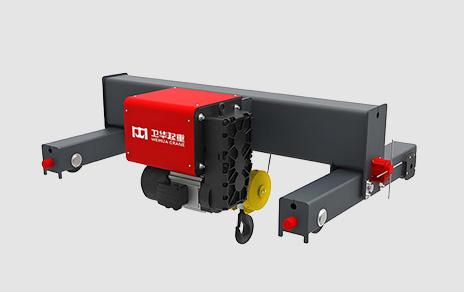

The European hoist trolley for double-beam cranes is an efficient lifting equipment that integrates advanced European design concepts and technologies. And it is widely applicable to various industrial environments. Its compact structure and superior performance can significantly improve work efficiency and safety. The European hoist trolley is the core component of the system and has many advanced technologies. It adopts a modular design for easy maintenance and upgrading. The trolley is equipped with a high-performance motor and a variable frequency speed regulation system, which realizes stepless speed change and smooth start and stop, reduces mechanical shock and improves operating accuracy. In addition, the European hoist trolley is also equipped with an advanced braking system to ensure that it can stop quickly and safely under any circumstances.
Specifications
| Lifting Capacity(t) | Work Grade | Lifting speed (m/min) | Lifting height (m) | Number of falls | Travelling speed (m/min) | Height of trolley(mm) | Hook upper limit (mm) | Trolley wheel gauge (mm) |
| 5 | M5 | 5/0.8 | ≤ 24 | 4/1 | 2~20 | 500 | 330 | 1000 |
| 10 | M5 | 5/0.8 | ≤ 24 | 4/1 | 2~20 | 605 | 520 | 1000 |
| 16 | M5 | 3.3/0.53 | ≤ 16 | 6/1 | 2~20 | 700 | 860 | 1300 |
| 16 | M5 | 5/0.8 | ≤ 24 | 4/1 | 2~20 | 670 | 800 | 1300 |
| 20 | M5 | 5/0.8 | ≤ 24 | 4/1 | 2~20 | 670 | 800 | 1300 |
| 32 | M5 | 3.3/0.5 | ≤ 16 | 6/1 | 2~20 | 750 | 975 | 1300 |
| 32 | M5 | 5/0.8 | ≤ 24 | 8/2 | 2~20 | 720 | 1075 | 1300 |
| 40 | M5 | 5/0.8 | ≤ 24 | 8/2 | 2~20 | 720 | 1075 | 1300 |
| 50 | M5 | 3.3/0.5 | ≤ 24 | 12/2 | 2~20 | 770 | 1100 | 1400 |
| 63 | M5 | 2.4/0.4 | ≤ 21 | 16/2 | 2~20 | 770 | 1100 | 1400 |
| 80 | M5 | 2.4/0.4 | ≤ 21 | 16/2 | 2~20 | 785 | 1150 | 1600 |
Advantages
When purchasing a marine travel lift for sale, it is recommended to conduct a professional evaluation in the following four areas:
Compact & Space-Optimized Design

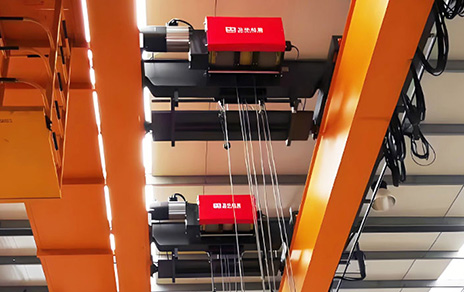

The double-girder European hoist trolley features a compact, low-headroom layout integrated between the main girders, significantly reducing the overall height and hook limit dimensions compared to traditional designs. This increases the effective lifting height and working scope, making it ideal for facilities with height constraints.
Lightweight & Cost-Effective Construction
Adopting modular design and FEM/DIN European standards, the trolley achieves a structure that is 20–30% lighter than conventional models, reducing wheel pressure and lowering the cost of workshop foundation and rail systems. The lightweight design also contributes to lower energy consumption during operation.
Precision Handling & Advanced Drive Control
Equipped with variable frequency drive (VFD) technology, the trolley enables stepless speed control, smooth acceleration/deceleration, and precise load positioning with accuracy up to ±1mm on advanced models. Optional electronic anti-sway technology ensures stable load handling without swinging, enhancing both safety and operational efficiency.
Durable Components & Low Maintenance
Key components—including hardened three-in-one gear motors, forged 65Mn wheels, and high-strength wire rope drums—are built for long service life with minimal upkeep. The modular structure simplifies inspection and parts replacement, while<
