Description

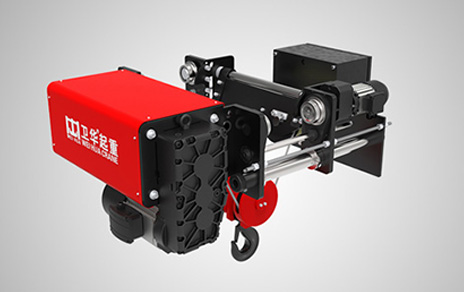

The European electric hoist is a high-performance, lightweight lifting equipment designed according to European technical standards, complying with FEM standards. It is typically used in conjunction with European cranes, single-girder overhead cranes or double-girder overhead cranes, suspension rails, and other equipment, allowing for flexible adaptation to various scenarios. Its core features include a compact structure, light weight, energy saving, and high efficiency, making it suitable for occasions with high requirements for precision, space, and energy efficiency. Such as automobile manufacturing, precision instrument assembly, food and medicine, warehousing and logistics, automated production lines, and other scenarios.
Specifications
| Type | Load Capacity(T) | Lifting Height(m) | Lifting Speed (m/min) | Traveling Speed | Lifting Motor Power(kw) | Rope Dia. (mm) | Group(ISO) | Rope Reeving |
| (m/min) | ||||||||
| Single Girder | 3.2 | 6/9/12/15/18 m | 5/0.8 | 20/5 | 3.2/0.45 | 7 | M5 | 4/1 |
| 5 | 6/9/12/15/18 m | 5/0.8 | 20/5 | 6.0/0.9 | 9 | M5 | 4/1 | |
| 6.3 | 6/9/12/15/18 m | 5/0.8 | 20/5 | 6.0/0.9 | 9 | M5 | 4/1 | |
| 8 | 6/9/12/15/18 m | 5/0.8 | 20/5 | 9.5/1.5 | 13 | M6 | 4/1 | |
| 10 | 6/9/12/15/18 m | 5/0.8 | 20/5 | 9.5/1.5 | 13 | M5 | 4/1 | |
| 12.5 | 6/9/12/15/18 m | 5/0.8 | 20/5 | 12.5/1.9 | 13 | M5 | 4/1 | |
| Double Girder | 5 | 6/9/12/15/18 m | 5/0.8 | 20/5 | 6.0/0.9 | 11 | M5 | 4/1 |
| 10 | 6/9/12/15/18 m | 5/0.8 | 20/5 | 9.5/1.5 | 15 | M5 | 4/1 | |
| 12.5 | 6/9/12/15/18 m | 5/0.8 | 20/5 | 12.5/1.9 | 15 | M5 | 4/1 | |
| 16 | 6/9/12/15/18 m | 4/0.6 | 20/5 | 16/2.6 | 18 | M5 | 4/1 | |
| 20 | 6/9/12/15/18 m | 4/0.6 | 20/5 | 16/2.6 | 18 | M5 | 4/1 | |
| 20 | 6/9/12/15/18 m | 3.4/0.5 | 20/5 | 16/2.6 | 18 | M5 | 4/1 | |
| 25 | 6/9/12/15/18 m | 3.4/0.5 | 20/5 | 16/2.6 | 18 | M5 | 4/1 | |
| 40 | 6/9/12/15/18 m | 4.9/0.8 | 20/5 | 38 | 20 | M5 | 4/1 | |
| 63 | 6/9/12/15/18 m | 3.3/0.5 | 20/5 | 38 | 20 | M5 | 4/1 |
Advantages
When purchasing a marine travel lift for sale, it is recommended to conduct a professional evaluation in the following four areas:
Compact & Space-Saving Design
The European hoist features a parallel C-type structural layout with an integrated motor, reducer, and reel assembly, creating an exceptionally compact footprint. This low-headroom design maximizes effective lifting height and minimizes clearance requirements, making it ideal for workshops with height constraints.
Precision Handling & Smart Monitoring
Equipped with full variable frequency drive (VFD) technology, the hoist enables stepless speed control, smooth start/stop, and millimeter-level positioning accuracy. An optional intelligent "black box" safety recorder continuously monitors crane operation status, prevents unauthorized operations, and provides real-time fault diagnostics.
FEM-Compliant & Long Service Life
Designed and manufactured according to FEM (European Federation of Materials Handling) standards, the hoist ensures high reliability, energy efficiency, and a design life of 10+ years. Maintenance-free components—hardened gear reducers, pre-lubricated for life, and corrosion-resistant coatings—significantly reduce long-term upkeep costs.
Versatile Configuration & Broad Application
Available in capacities from 1t to 80t with multiple structural types (single-girder trolley, double-girder trolley, low-headroom, explosion-proof versions), the hoist adapts to diverse working conditions. Optional wireless remote control and automatio
