Description

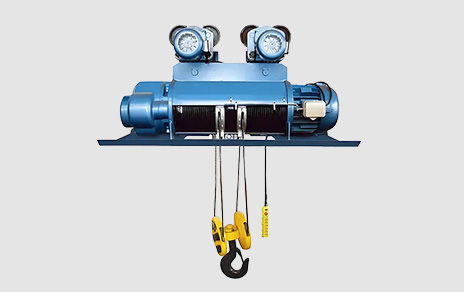

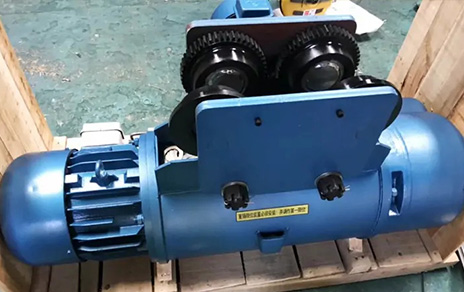

YH metallurgical wire rope electric hoist, also known as a high-temperature electric hoist, is designed for lifting molten metal and other high-temperature solid objects designed for special lifting equipment. Its lifting capacity is usually ≤10 tons, lifting height is ≤20 meters, working environment temperature is -10℃~60℃, and relative humidity is not more than 50% at 40℃. weihua provides many kinds of metallurgical electric hoists, including 0.5 tons, 2 tons, 3 tons, 5 tons and 10 tons etc., which are equipped with multiple safety protection devices such as double brakes, double limits and heat insulation boards etc., and are suitable for places with no fire, explosion danger and corrosive medium. It is suitable for places without fire, explosion danger, and corrosive medium, such as foundries, furnace workshops, smelters, power stations, and other high-temperature occasions.
Specifications
| Capacity(t) | 10 | ||||
| Type | YH | ||||
| Hoisting height(m) | 9 | 15 | 21 | 27 | |
| Hoisting speed(m/min) | 7,0.7-7,7/1.75 | ||||
| Travel speed(m/min) | 20 | ||||
| Wire rope | Dia(mm) | 15 | |||
| Specification | 6x37+IWR | ||||
| Track | 32b-45a | ||||
| Hoisting motor | power(kw) | 13 | |||
| Rotation speed(r/min) | 1400 | ||||
| Current(A) | 30 | ||||
| Travel motor | power(KW) | 0.8x2 | |||
| Rotation speed(r/min) | 1400 | ||||
| Current(A) | 2.4 | ||||
| Power source | 3-phase A.C.380v 50hz | ||||
Advantages
When purchasing a marine travel lift for sale, it is recommended to conduct a professional evaluation in the following four areas:
Dual Emergency Braking System
Equipped with double brakes—a built-in conical brake as the primary support and an independent mechanical safety brake acting directly on the drum. Even if the transmission system fails or power is lost, the safety brake prevents molten metal from falling, meeting strict national safety regulations for lifting molten metal .
High-Temperature Endurance & Thermal Protection
Designed for extreme heat, the hoist operates reliably at ambient temperatures up to 60°C. Features include H-class motor insulation, a dedicated thermal insulation plate beneath the gearbox and motor to block radiant heat, and high-strength steel-core wire rope specifically selected for high-temperature performance .
Purpose-Built for Molten Metal Handling
Specifically engineered for lifting molten metal (steel, iron, copper) and high-temperature solid objects, the YH hoist complies with national safety technical specifications for special lifting equipment. It is widely used in steelmaking, foundries, smelters, and power stations for high-risk, high-temperature operations .
Compact, Lightweight & Modular Structure
Based on upgraded CD1/MD1 designs, the YH hoist features a compact, lightweight construction ideal for small and medium-sized metallurgical workplaces. Its modular design with bolt connections allows easy assembly, maintenance, and parts interchangeabi
